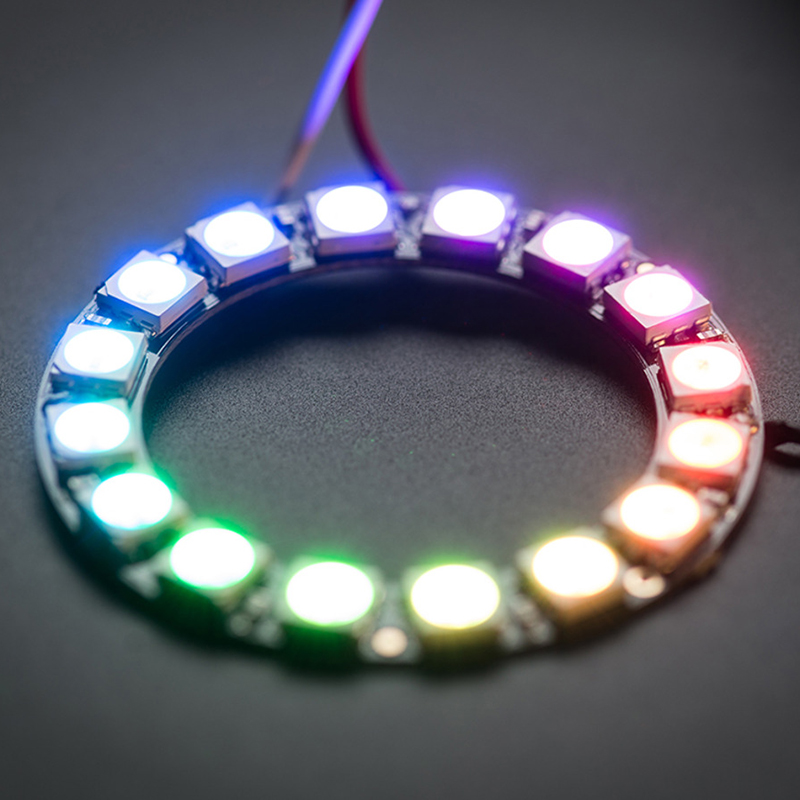

WS2812 Neopixel Ring 16-LED RGB

The WS2812 NeoPixel Ring 16 LED RGB module features 16 individually addressable RGB LEDs arranged in a circular pattern. Each LED integrates a control circuit and RGB chip within a 5050 component package, allowing for precise color control and dynamic lighting effects.

Categories: , Tags: , , , ,

Description

Descrription

The WS2812 NeoPixel Ring 16 LED RGB module features 16 individually addressable RGB LEDs arranged in a circular pattern. Each LED integrates a control circuit and RGB chip within a 5050 component package, allowing for precise color control and dynamic lighting effects. The module supports a single-wire communication protocol, making it easy to daisy-chain multiple rings for complex designs. With a data transmission speed of 800Kbps, it ensures smooth and responsive performance.

Features and specifications

  • 16 individually addressable RGB LEDs (SK6812- or WS2812B-based NeoPixels)
  • Circle outer diameter of 1.75In (44.5mm) and inner diameter of 1.25In (31.8mm)
  • 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
  • One-wire digital control interface
  • Operating voltage: 5V
  • Each RGB LED draws approximately 50mA at 5V with red, green, and blue at full brightness (~800mA max for the ring)
  • Multiple NeoPixel rings can be chained together
